K5420-1

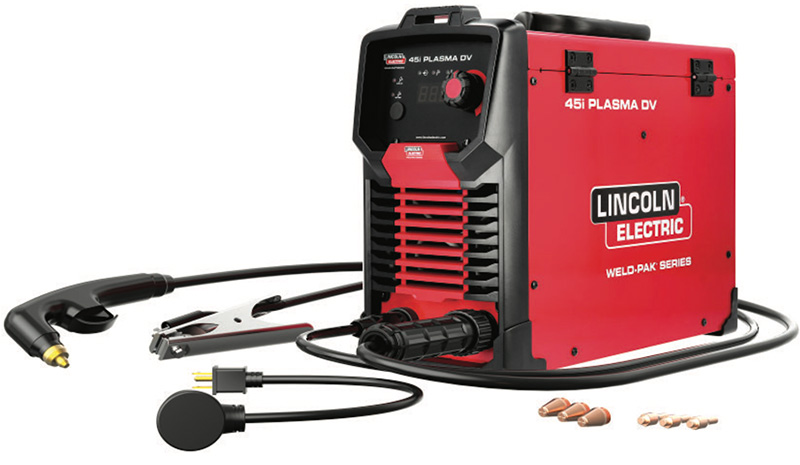

The Weld-Pak® 45i Plasma DV is a lightweight (25 lbs), dual-voltage plasma cutter built for versatility. Designed for portability, it features a built-in toolbox for cable storage. With 45 amps of power, it easily cuts thick or expanded metal, making it ideal for farms, HVAC, autobody shops, contractors, fabricators, and homeowners. The touch-start arc ensures reliable ignition without high-frequency issues, while the Parts-in-Place™ system guarantees proper setup. Just connect compressed air, grab the torch, and start cutting.
- Features
- LED Display
- Continuous Output Control
- Touch Start System
- Top Storage Compartment
- Lightweight & Portable
- Dual Voltage
- Controls
- Handle
- Main Control Knob
- Cut Mode Indicator LEDs
- Cut Mode Button
- Workpiece Lead Connection
- Plasma Torch Connection
- On/Off Switch
- Input Cord
- Cooling Fan
- Compressed Air Connection
| Product Name | Product Number | Input Power Voltage/Phase/Hertz | Rated Output Current/Voltage/Duty Cycle | Recommended Circuit Breaker | Output Range | Gas Pressure Required | Gas Flow Rate | Dimensions H x W x D in (mm) | Net Weight lb (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 45i PLASMA DV | K5420-1 | 230/120/1/50/60 | 230 V 32A / 92.8V / 100% 41A / 96.4V / 60% 45A / 98V / 50% 120 V 32A / 92.8V / 100% 15A / 86V / 100% 16A / 86.4V / 60% 20A / 88V / 20% |
230 V – 30 A 120 V – 20 A |
15-45A | 80 to 130 psi (6-9 bar) |
70psi @ 125- 200SCFH (5 Bar @ 80 Liters/min) | 13.7 (349) 8.5 (216) 17 (432) | 25.9 (11.8) |
- Farm
- Home
- HVAC/Plumbing
- Fabrication Shop
- Contractors
- Metal Fabrication
- Hobby and Home
- Automotive
